About this item

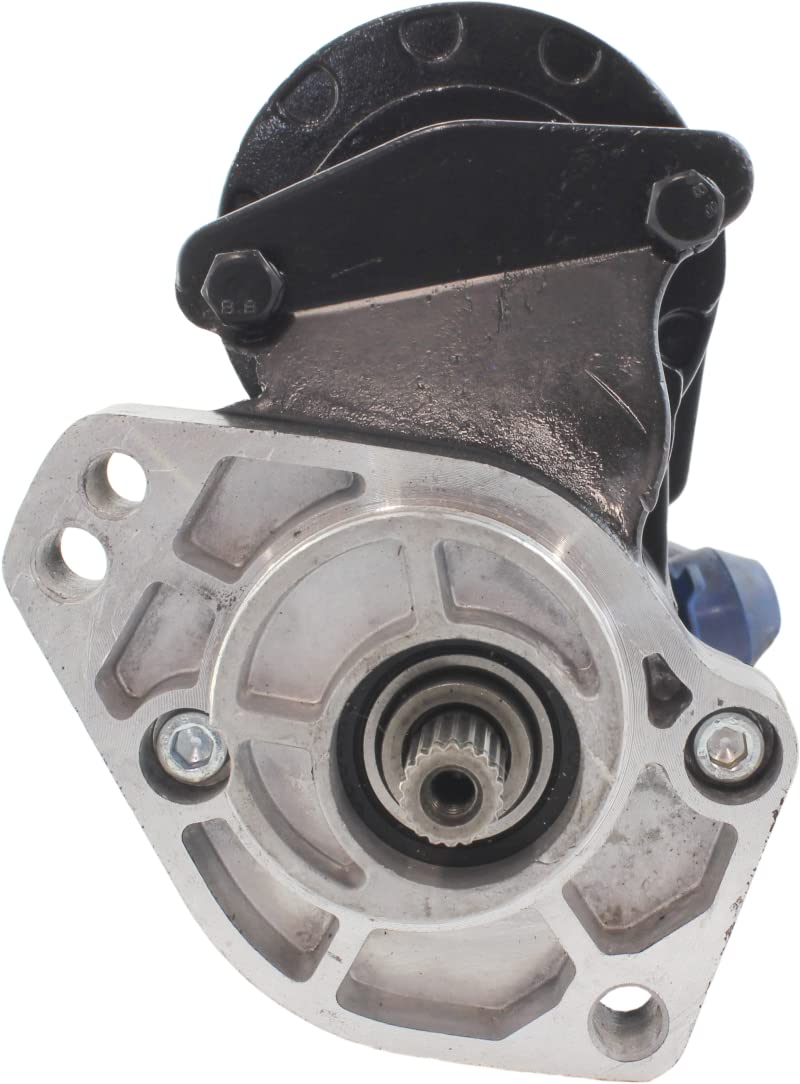

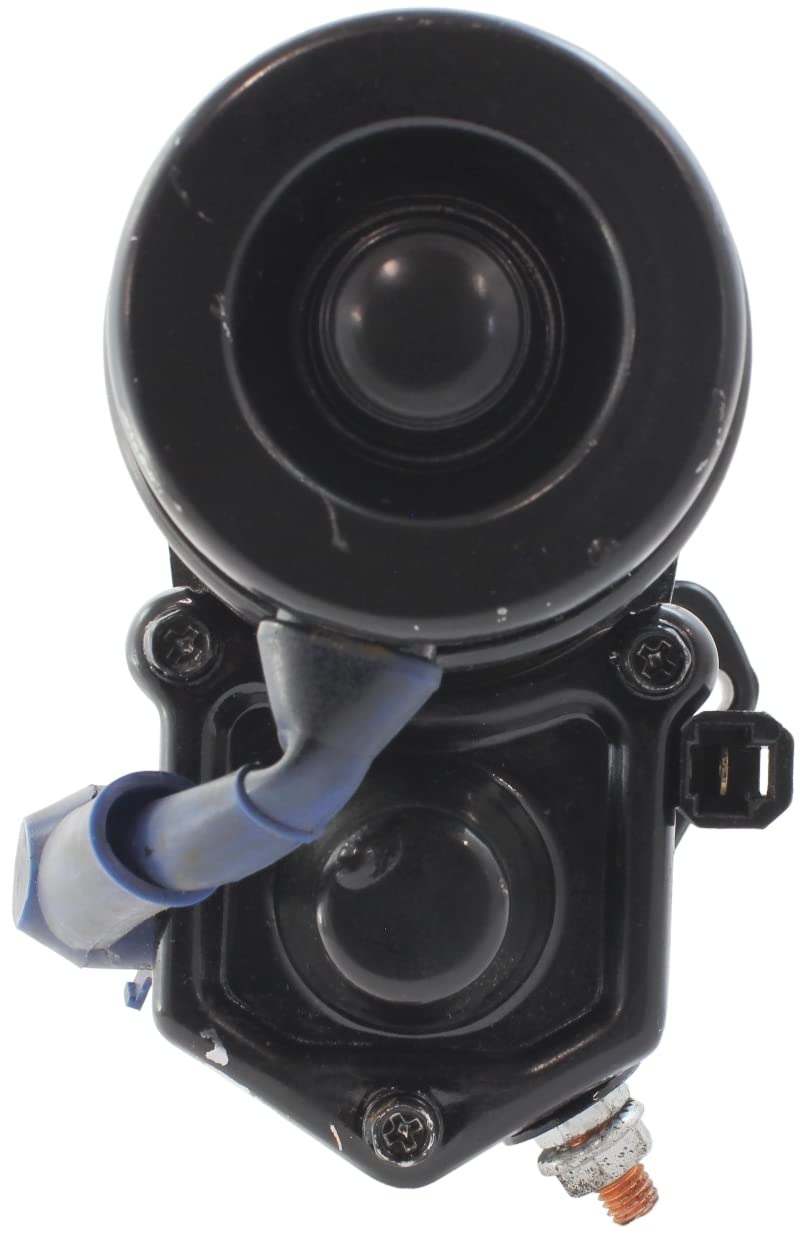

• Off Set Gear Reduction 12 Volt 2.0KW / 2.70HP 18 Spline 10/32 Hole - Meets or Exceeds OEM Specifications
• CRITICAL NOTES: When Used to Replace 1.2kW Version, The Oil Tank MAY Need to Be Relocated and the Oil Lines Rerouted. Clutch Dual Threaded to Accept 10-32 & 1/4-20 Jackshaft Bolt Use Jackshaft Bolts Supplied with Starter This Starter Will Require Modification to Fit Factory OEM Bikes. Overall Clearance is Reduced by 1 Inch with this Unit on Most Models.
• THIS IS A LARGER 2.0KW STARTER. CAN NOT BE USED ON 1989-ON FLT MODELS WITH OIL TANK UNDER THE TRANSMISSION. SOFT-TAIL, DYNA AND FXR MODELS REQUIRE RELOCATING OIL LINES AND WIRING TO ACCOMMODATE BIGGER STARTER.
• Clutch Dual Threaded to Accept 10-32 & 1/4-20 Jackshaft Bolt Use Jackshaft Bolts Supplied With Starter Voltage: 12 Power: 2kW / 2.68HP Condition: New Rotation: CW Starter Type: OSGR Number of Teeth: 18 Gear OD: 0.508in / 12.9mm Mtg Ear 1 Hole: 9mm Unthreaded Mtg Ear 2 Hole: 9mm Unthreaded Mtg Ear 3 Hole: 9mm Unthreaded Warranty: 1 Year Notes: 7mm Mounting Pilot Hole Application: Harley Davidson Motorcycle Applications Weight: 12.36 lbs / 5.62 kg
• 100% Computer Load Tested for Reliability!
• One year Warranty!
